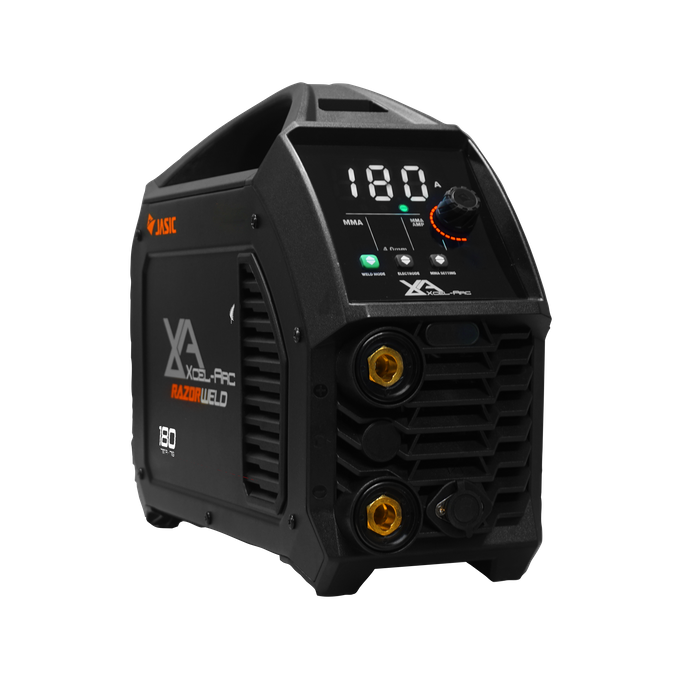

RAZORWELD ARC180 MMA/TIG DC INVERTER WELDER
Stock Code:
WPXA-RZARC180-K
Price:
$1,092.50 Incl GST
This item is currently not held in store and could take 3 – 5 days to be delivered.
Description
This powerful, professional STICK (MMA) machine is designed to be taken on the worksite or the workshop.
- Packed full of advanced features including hot start, arc force and anti-stick
- Capable of DC Lift Arc TIG for more versatility
- A 5-year warranty to reflect our confidence in this machine
DC LIFT ARC TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the work piece and lifting it up to start the arc. This stops the tungsten tip sticking to the work piece and breaking the tip from the tungsten electrode.
Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE : 240V Single Phase
SUPPLY PLUG : 15 AMP
RATED INPUT POWER (kVA) : 7.2
Ieff (A) : 14.7
RATED OUTPUT : 20-180A
NO LOAD VOLTAGE (V) :78
SUPPLY PLUG : 15 AMP
RATED INPUT POWER (kVA) : 7.2
Ieff (A) : 14.7
RATED OUTPUT : 20-180A
NO LOAD VOLTAGE (V) :78
PROTECTION CLASS: IP23S
INSULATION CLASS : H
MINIMUM GENERATOR (kVA) : 10.0
DINSE CONNECTOR : 35/50
STANDARD : AS/NZ60974-1
SUITABLE MATERIAL : Mild Steel, Stainless Steel, Copper, Cast Iron
WARRANTY (Years) : 5
WARRANTY (Years) : 5
TIG SPECIFICATIONS
TIG FUNCTION TYPE : DC Lift Arc
TIG WELDING CURRENT RANGE : 10-180A
TIG DUTY CYCLE @ 40°C : 25% @ 180A, 60% @ 116A, 100% @ 90A
TIG WELDING THICKNESS RANGE : 1-6mm
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE : 20-180A
STICK DUTY CYCLE @ 40°C : 20% @ 180A, 60% @ 104A, 100% @ 81A
STICK ELECTRODE RANGE : 2.5-4.0mm
STICK WELDING THICKNESS RANGE : 2-7mm
Size & Weight
DIMENSIONS (mm) : 370x255x125mm
WEIGHT (kg) : 5.8kg
MACHINE FEATURES
VRD : Yes
THERMAL OVERLOAD PROTECTION : Over Temperature Warning
